Sun-Torque Solar Brushless Surface Mount 4.2-60 | 4200L/hr | 60M Head



When you need to push a reasonable amount of water you have a bit of a hill to push up the Sun-Torque 4.2-60 is the pump for the job. This pump can deliver a maximum of 4200 litres per hour or a maximum total head of 60 metres.

Whether you’re pumping from a channel, dam, tank or other this Solar surface mount pump is a ripper in performance and reliability. This pump runs solely from Solar included in your kit is the pump, MPPT controller and your choice of Solar panels. This pump will run well with 4 panels, you can run it with 6 panels for a longer pumping day the pump will also perform better on cloudy days with the extra 2 panels.

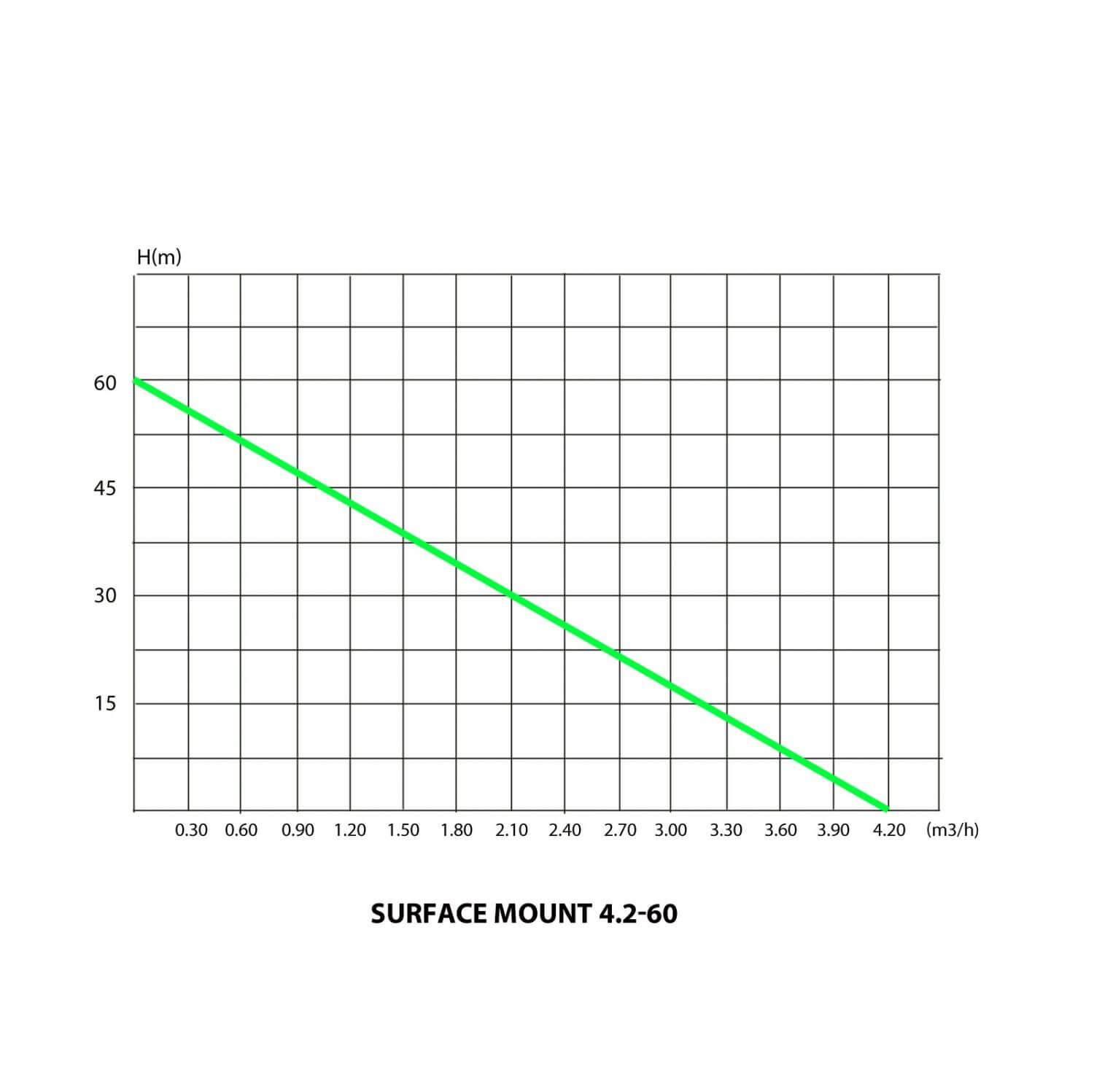

Please refer to our pump calculator to get your total head & compare to the curve graph for head & flow ranges. On surface mount pumps we recommend not exceeding 65% of maximum head height for this pump that is 39m.

Package Includes:

  • 750W Brushless DC Surface Mount Pump

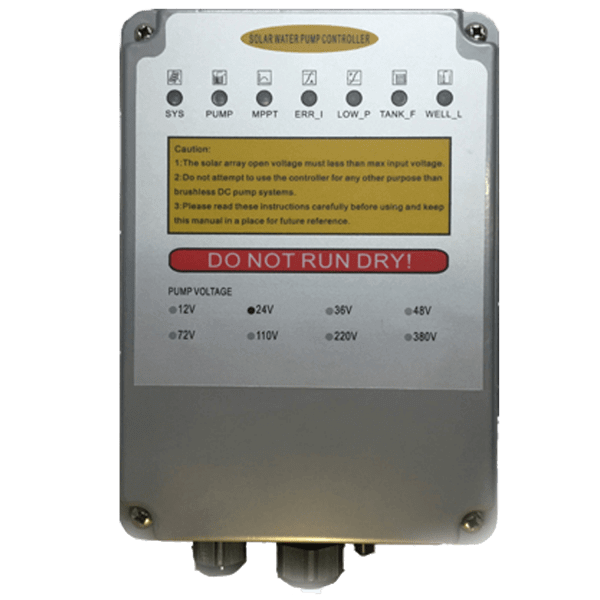

  • MPPT Sealed Solar Pump Controller
  • Solar Panels to suit – (choose from dropdown menu)
  • Well Sensor to stop pumping if the water source is low
  • Tank Sensors to stop pumping if the tank is full
  • 5 Metre Cable for Solar Panel
  • Instruction Manual


  • Max flow rate: 4200 litres per hour / 70 litres per minute
  • Max head (vertical pumping distance): 60 metres
  • Voltage – 48v
  • Pump power 750W
  • Pump Outlet: 1″
  • Stainless Steel Pump, Motor & Screw
  • NSK Bearings
  • Brushless DC Pump Motor

Optional extras:

  • 4 or 6 panel stand to mount solar panels.
  • Railing/connectors take all the hard work out of building your own stand, they connect to the solar panels and bolt straight onto your own stand.
  • Pressure switch kit if you’re filling a tank that is some distance from where you’re pumping from. The switch that comes with the system is wired whereas there is an option to purchase a mechanic pressure switch that doesn’t require a cable.
  • Extra cable. Pump comes with 3 metres of cable on it if you need
    more calculate the distance from where you’re pumping from to where you will
    mount the controller. Maximum 80 metres extra cable for this pump.

Commodore Pump Warranty Statement

Commodore Pumps (motor and pump head) come with a 24 Month warranty, and Commodore Pump Controllers come with a 12 month warranty. New solar panels have a 25 year output warranty. Used solar panels have a 10 year warranty. If your item is found to be defective within the warranty period we will replace the defective part free of charge. You are welcome to send any faulty goods back and our factory trained staff will carry out the repair for you free of charge within the warranty period. Repairs outside of the warranty period are available at a reasonable cost. Shipping is cost of buyer. Consumables (such as helical rotor pump impellers), cables, leads, etc are not covered by warranty. Negligence or misuse is a warranty exclusion. Commodore is not responsible for any direct or indirect expenses or losses related to warranty or non warranty.

Weight 311 kg
Dimensions 40 × 40 × 40 cm
Solar Panels

No Panels, 4 X 270w, 6 X 270w

Solar Panel Stand

No Panels, 4 Panel Stand, Railing/connectors for 4 Panels, 6 Panel Stand, Railing/connectors for 6 Panels

Pressure Switch

No Switch, Pressure Switch
