Submersible Multistage AC Pump 240v | 4SPM2-13
$1,090.00
- Description
Description
Submersible AC Pump
Commodore submersible pumps have been trusted by Aussie farmers since 2011 and can be found in every corner of the country, even scattered across the world. Call the Commodore team to find the submersible pump for your farm.
Specifications
| Single Phase | 240V AC 50Hz |
| Power | 0.55kW / 0.75HP |
| Max Flow Rate | 3 m31/hr or 3,000 litres per hour (at minimum head height) |

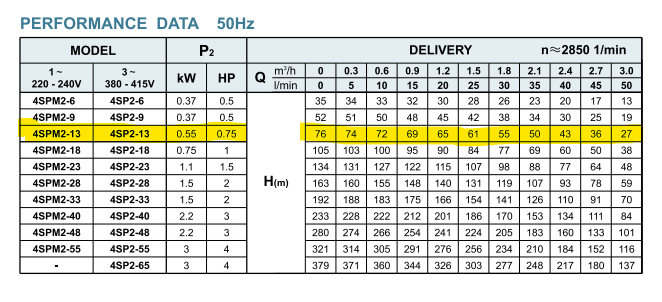

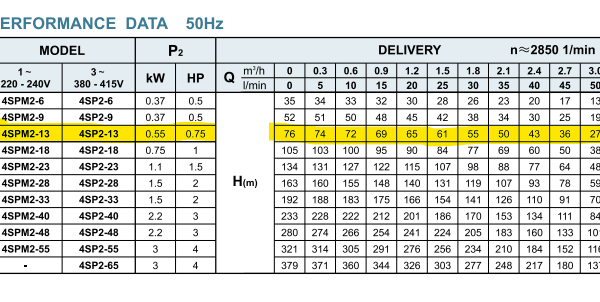

| Max Head Height | 76m (where flow stops - see above images for head and flow ranges) |
| Minimum Head Height | at 50Hz 27m |
| Unit Weight | 11.6kg plus cable weight |
| Max Diameter | 100mm (4") |
| Total Length | 757mm |
| Outlet | 1.25"BSP |
| Motor | High Quality Stainless Steel 304 |
| Pump Head | Stainless Steel 304 |

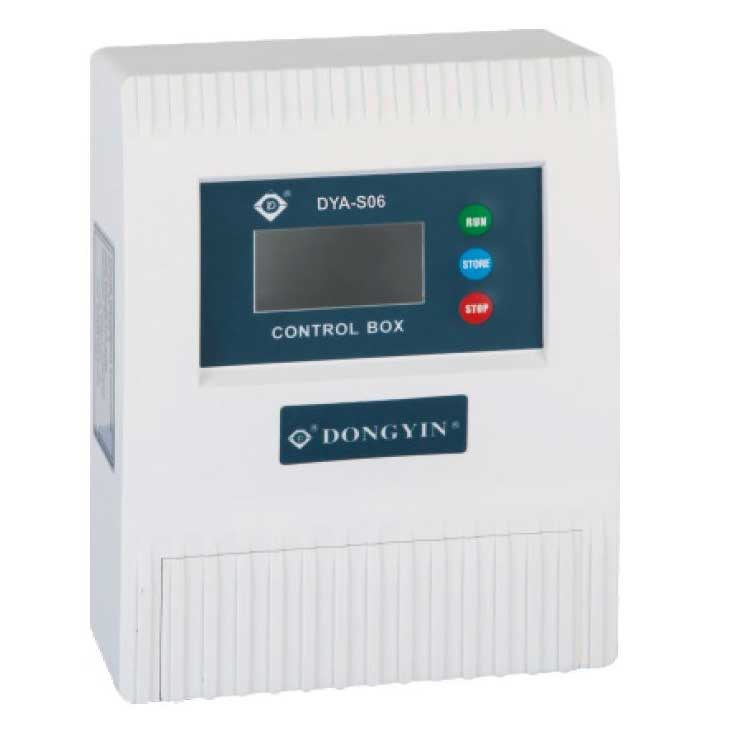

Single Phase Controller Features & Benefits
LCD display screen with running status and info
Low water / dry running protection – with low current detection and/or water sensors
Overload / Stalled motor protection
Over voltage & Under voltage protection
Transient surge protection
Simple Push-button motor-current calibration
Memory function on power loss, with the last 5 fault codes recorded
Built in start capacitor
Case protection class IP22
Package Includes
Pump Starter Box with Capacitor
AC Submersible Multistage Pump
Instruction
Manual
