Submersible Solar Pump Screw 3″ | 1.8-80 | 1,800l/hr | Max Head 80m | 24V
$1,490.00
This item: Submersible Solar Pump Screw 3" | 1.8-80 | 1,800l/hr | Max Head 80m | 24V
$1,490.00
$1,490.00
- Description
Description
Unlike many pumps online this pump is a genuinely high quality featuring high grade 316 stainless steel this makes an enormous difference in getting longevity out of your pump whether it lasts 2 years or 10. With our extensive knowledge of pumps and engineering we’ve developed our own range of pumps with the highest quality components from the bearings to the motor to the screw drive.

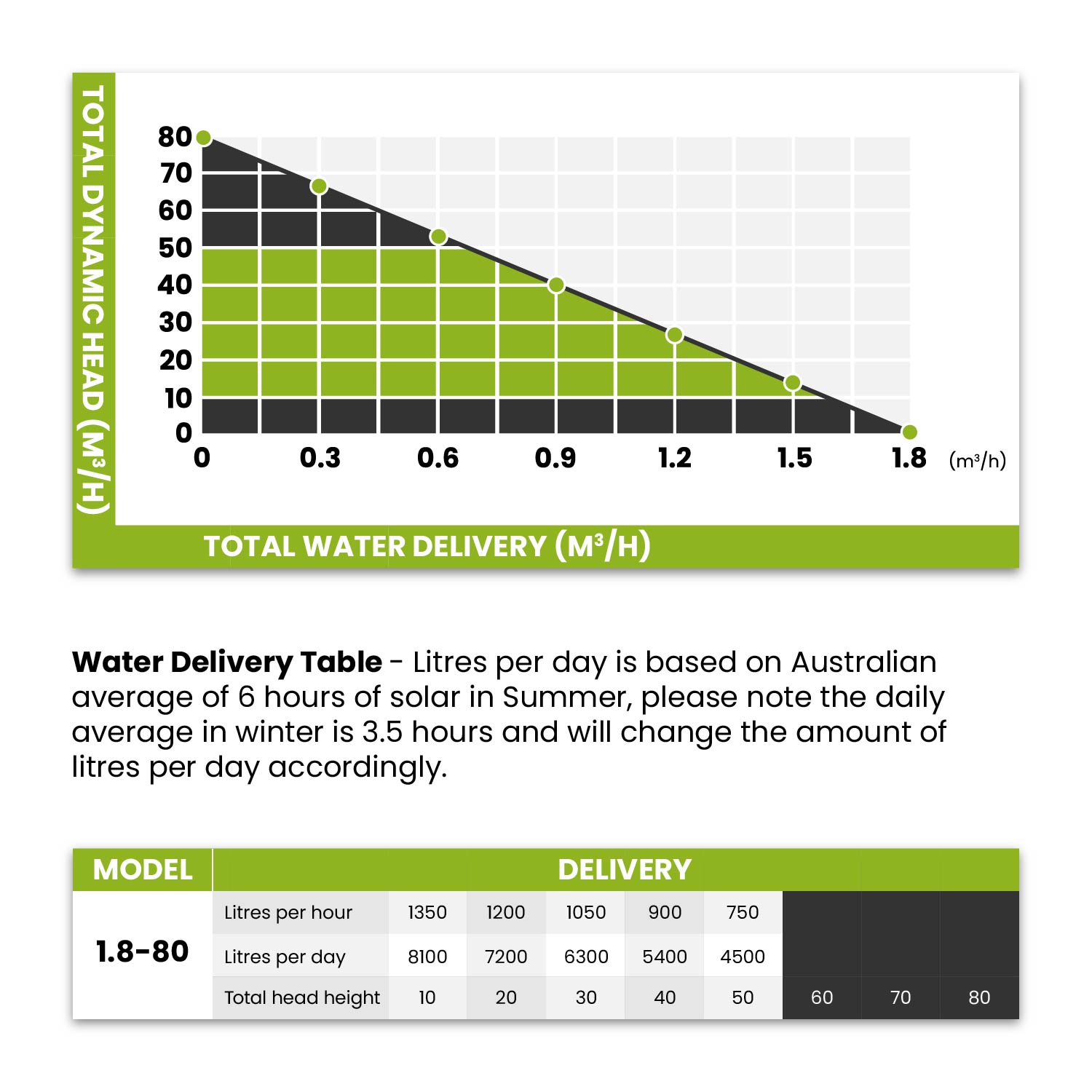

Please refer to our pump calculator to get your total head & compare to the curve graph for head & flow ranges. On submersible pumps we recommend not exceeding 65% of maximum head height for this pump which is 50m.
YouTube Videos
Solar Pump Replacement For Windmill & Diesel Pump
Learn from a local who has a Commodoore pump for a number of years as to how they truly perform on the farm
The Different Components In A Solar Pump Package
Want to know what's included with every solar pump? Then make sure you listen and learn to this video!
Specifications
| Voltage | 24V DC | |
| Power Input | 210W | |
| Max Flow | 1350L Per Hour | |
| Max Head | 50m | |
| Pump Material | 316 Stainless Steel | |
| Impeller Material | Rubber & Stainless Steel Impeller | |
| Diameter | 3 Inch | |
| Warranty | Full 2 Year (Controller + Pump), 25 Year Performance Warranty To 80% Output On The Solar Panels | |
| Outlet Diameter | 3/4 Inch BSP | |
Package Includes

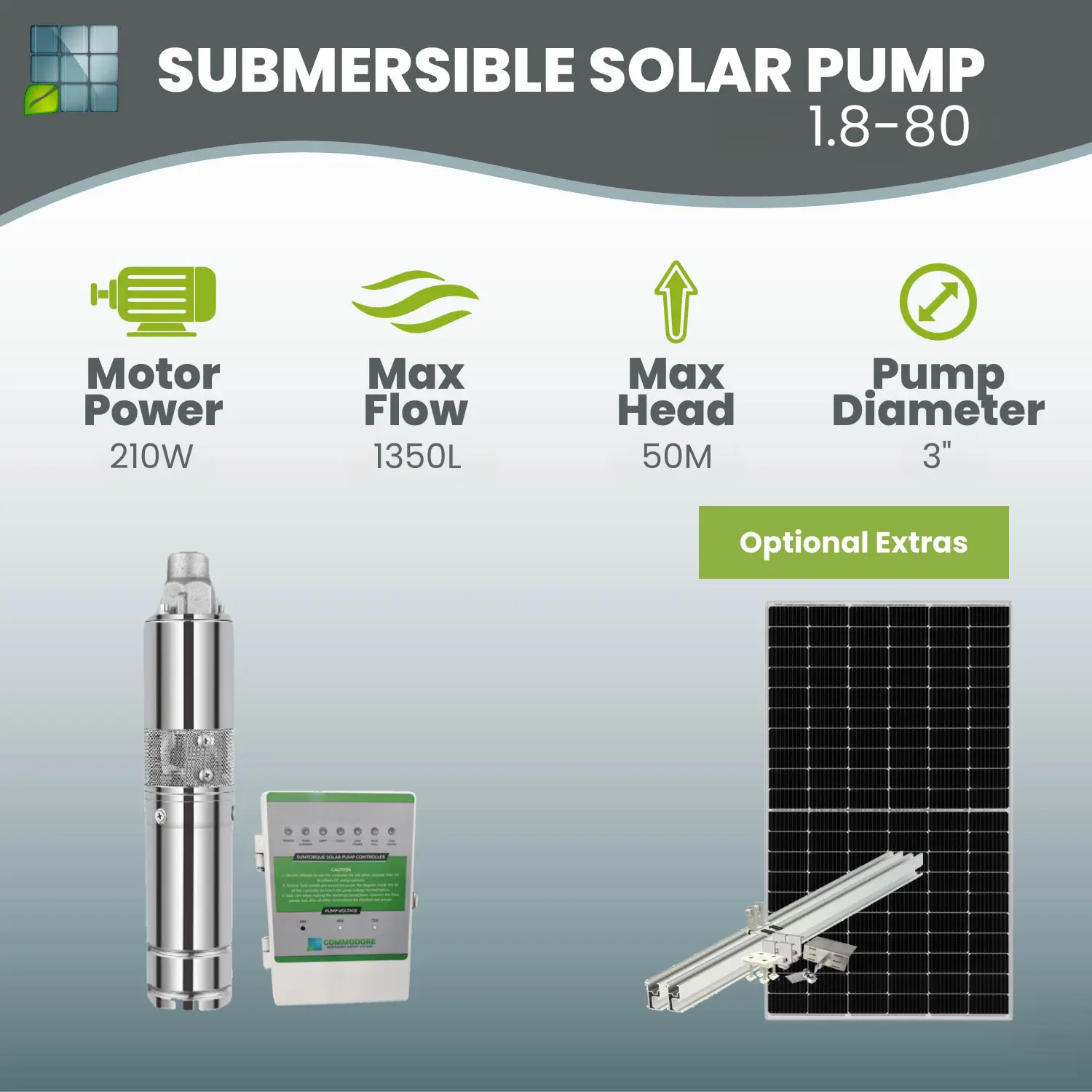

1.8-80 Submersible 24V DC Pump
The 1.8-80 is the most popular Commodore pump by a mile. Why you may ask? Well it's a great allrounder due to it's ability to pump to a 50m head height and it is great on price

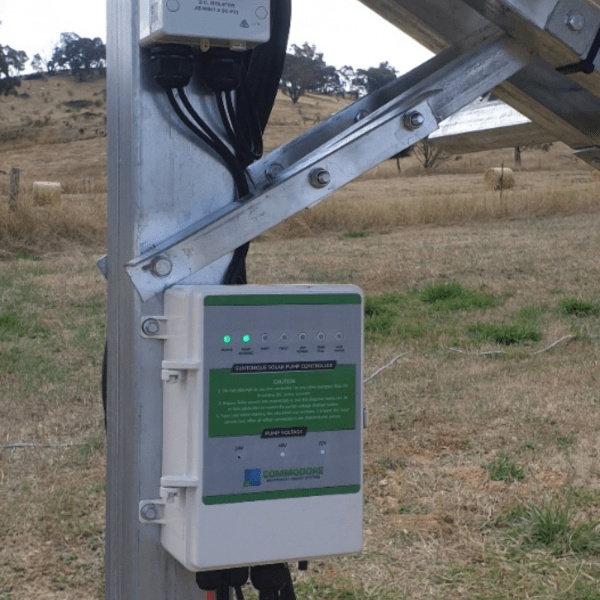

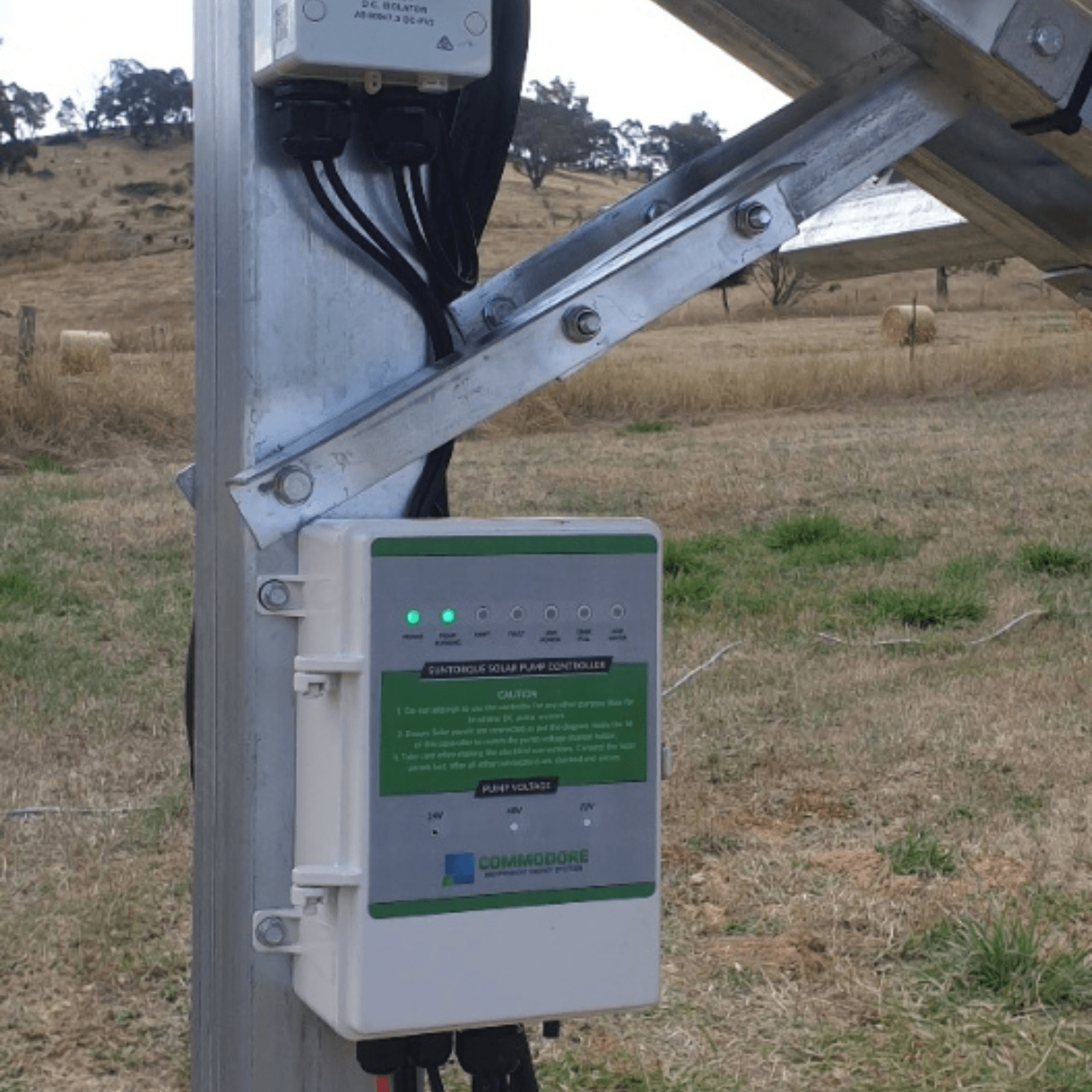

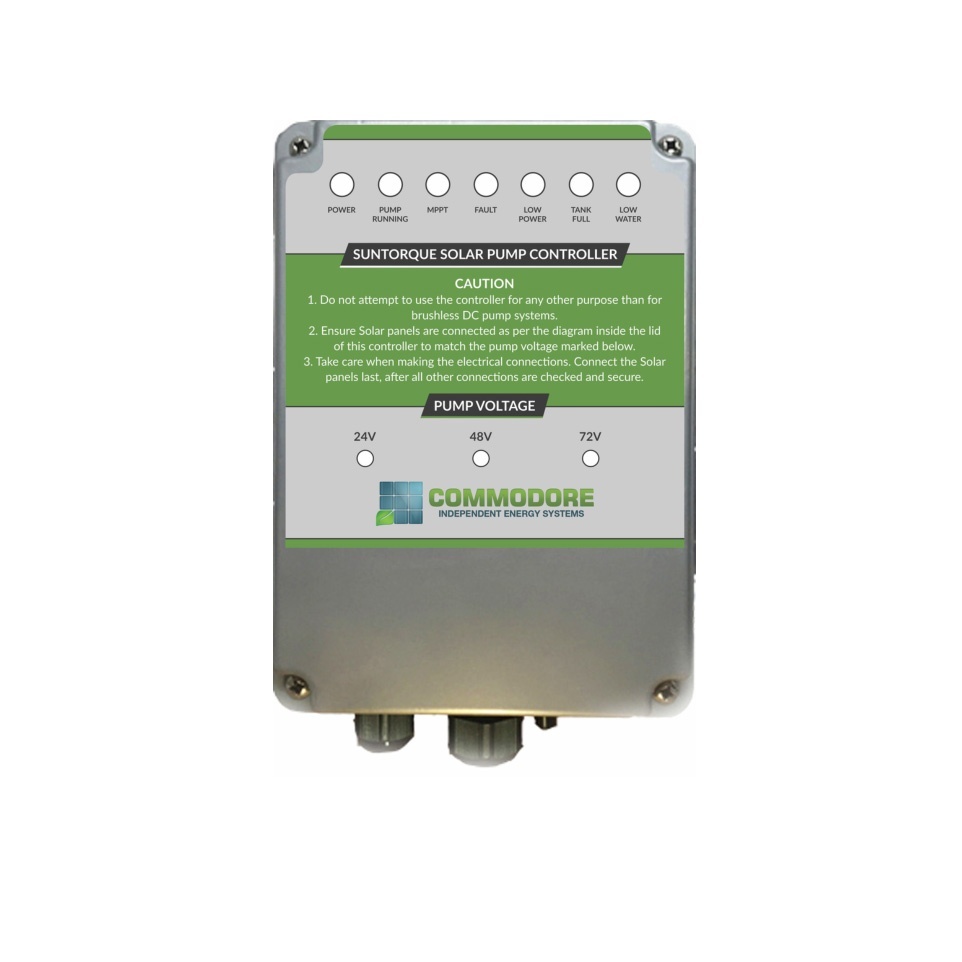

Commodore 24V Pump Controller
Designed for reliability and performance, our 24V pump controller is easy to install with screw terminals and a full instruction guide waiting
Water Level Sensors
High & low water sensors are included to ensure your pump doesn't run dry, or overfills your tank (if you're not using a pressure switch kit)
2m Of Solar Cable
Whether you order solar panels from Commodore or not, we will send up 2m of solar cable free of charge to make sure you can easily install your solar pump with your existing panels (if that's your plan)
Owners Manual
Your Commodore Owner's Manual details your installation from start to finish, and also has a number of QR codes to YouTube installation videos
Optional Extra's

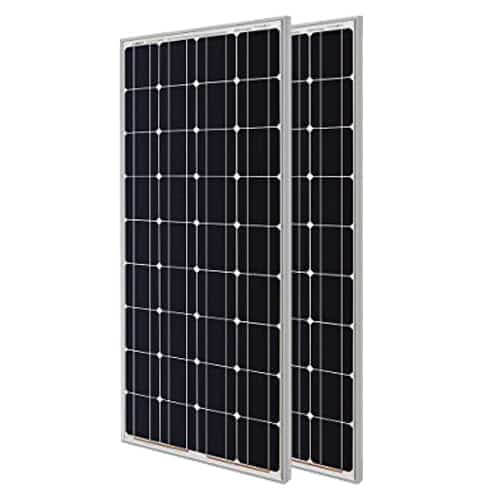

1 x Solar Panels
You only need 1 Solar to run this pump throughout the day (because it has a 210W motor). If you're looking to use your own panels, let us know and we can help with your panel design

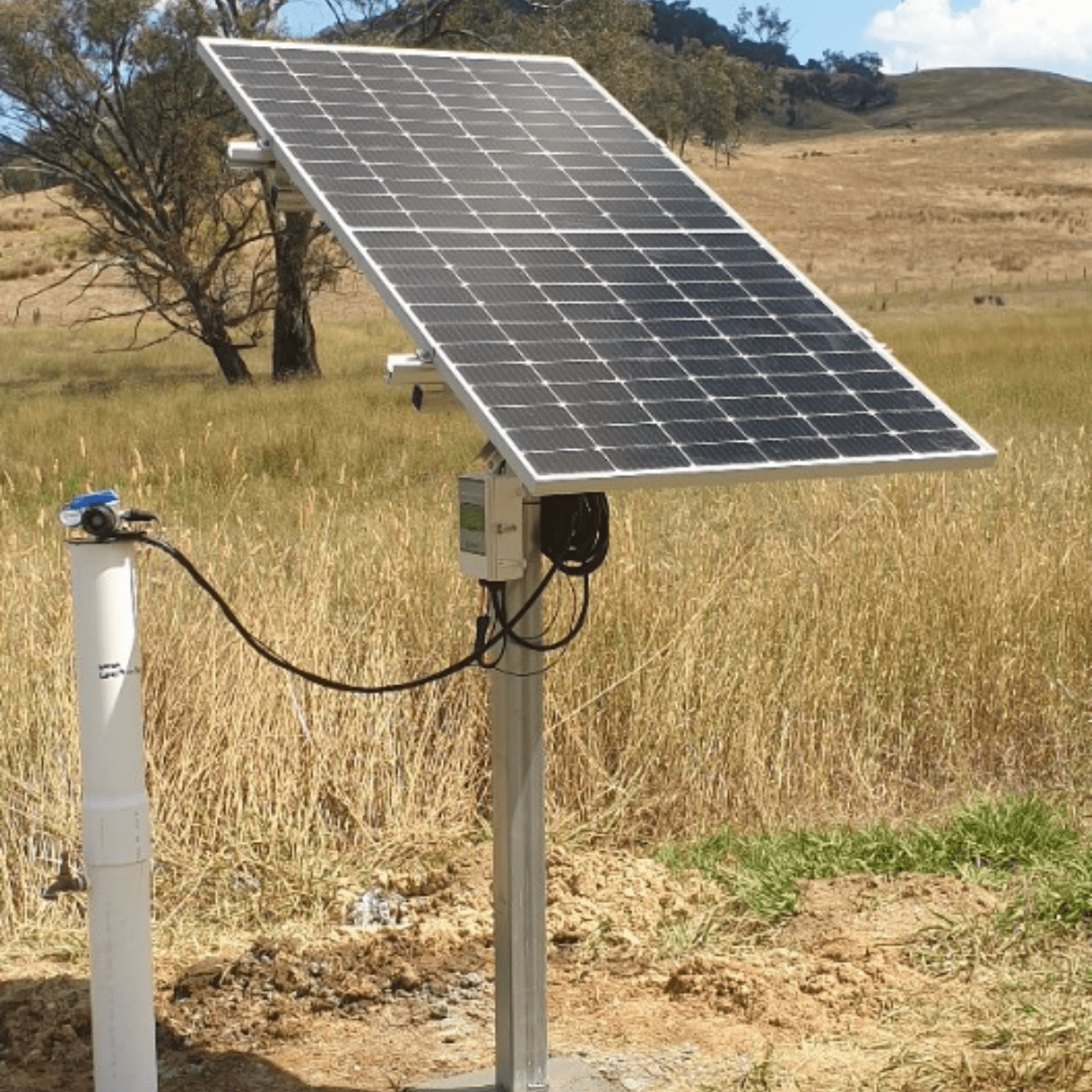

1 x 1-Panel Solar Stand
If you don't have a shed nearby or another structure, you will need to groundmount the solar panels. You can either build your own, or use a 1-Panel Solar Stand
Racking For 1 Solar Panels
Want to install your solar panels on a shed or you're building your own groundmount? Then make sure you order the racking for 1 solar panel. It includes all of the clamps and feet to install .
Extra Cable
We can fit as much cable as you need to your pump. Either select the cable length you require on our website if you're ordering online, or let our team know when you're chatting to them over the phone or via email.
Pressure Switch Kit
Are you pumping to a tank? If so, you can connect one of our pressure switch's to ensure your pump automatically shuts off when your tank is full.
Solar Pump Calculator
Take the guesswork out of finding the right solar pump with the Commodore Solar Pump Calculator
Helpful Resources
1.8-80 Warranty
All Commodore Solar Pumps come with a two year warranty on the pump & controller. JA 460W Solar Panels come with a 25 year performance warranty to 80% output and a 12 year product warranty
